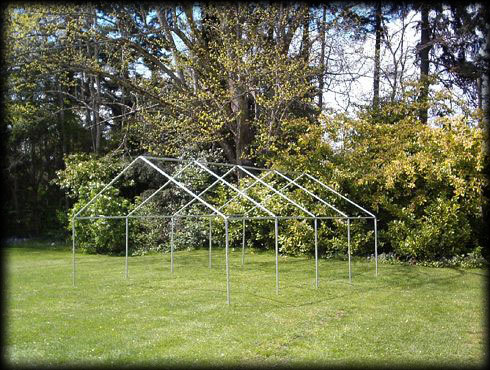

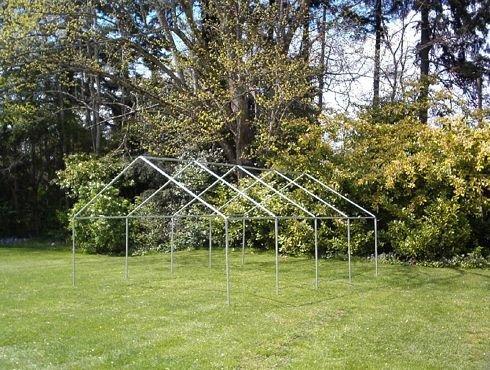

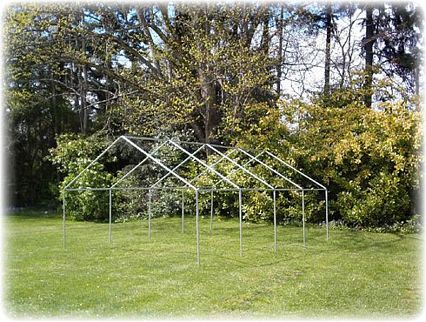

We know one of the greatest inconveniences of a camp is setting up your wall tent. We designed these frames with  this in mind. Your tent and frame can easily be set up in as little as 15 minutes as opposed to 2-3 hrs with an external wood pole frame. No trees to cut. The poles are a full 1 1/2" diameter aluminum tubing and come with aluminum angle joints that are bent and welded to the exact angle of the tent. At close to 1/2 the weight of a steel frame they are lightweight but very strong. A heavy duty bag is included with the frame.

These frames will fit most other tent brands.

*We pay shipping costs on wall tents and frames to your nearest bus depot in Canada.*





        Frame Size                  Prices                            Weight  (approx.)      Longest Frame Piece

                                     three truss frames

      10' x 12' x 5' -                 $499.00                          40 lbs.                            5' 10"

     *12' x 14' x 5'                  $549.00                          45 lbs.                             6' 9"     *four truss frame recommended for snow

                                      four truss frames

      10' x 15' x 5' -                 $599.00                          50 lbs.                            5' 10"

      12' x 14' x 5' -                 $649.00                          55 lbs.                            6' 5"

      14' x 16' x 5' -                 $699.00                          60 lbs.                            5' 1"

                                      five truss frames

      14' x 20' x 5' -                 $849.00                          75 lbs.                             5'

      16' x 20' x 5' -                 $949.00                          80 lbs.                             5'

                                      porch extension

       10' wide tents                 $149.00                          10 lbs.                             5' 10"

       12' wide tents                 $170.00                          12 lbs.                             6' 5"

       14' wide tents                 $185.00                          15 lbs.                             5'

       16' wide tents                 $199.00                          18 lbs.                             5'

                                   ( prices subject to change without notice)





    Setting up camp is quick and easy:

      1.  assemble the frame without legs (not inc. the porch frame)

      2.  drape the tent over frame

      3. if there is a porch feed the fittings through the small holes in the front of the tent and add the porch and porch frame (without the legs)

      4. if using a tarp lay it over the tent

      5.  lift up one side and install the legs

      6. lift up the other side and install the legs

      7.  pull tent down around frame

order now
